REMOTE MONITORING SYSTEM

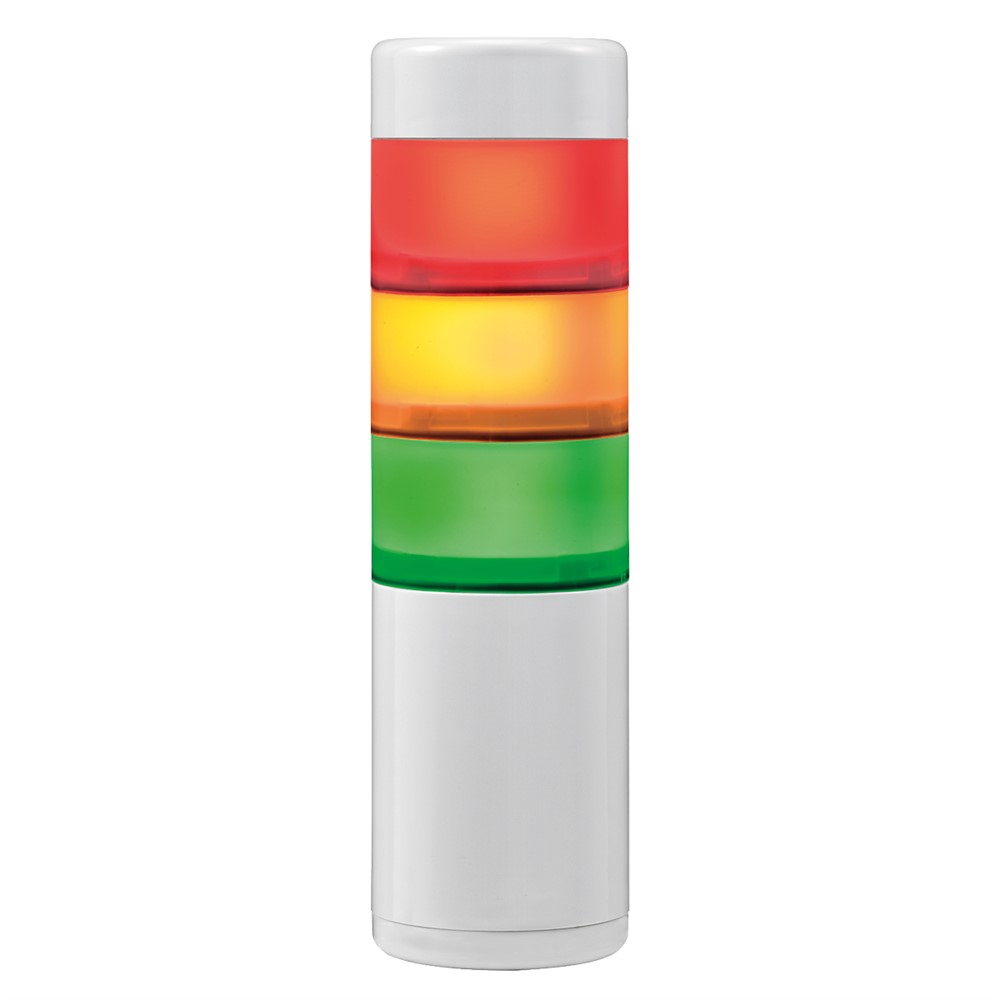

EOS WIFI is the remote monitoring solution for EOS signal towers. These Smart Factory devices enable real-time monitoring of machines, equipment and workstations with no complex installations or extensive wiring required, thus achieving increased efficiency of production processes in a variety of scenarios: industrial and automotive production lines, manual workstations, storage/logistics warehouses and packaging lines, machine tool manufacturing and the electronics industry, to name a few.
The EOS WIFI monitoring system combines EOS signaling devices (which act as an interface), wireless technology, the Sirena CONNECT App, and connection via the Cloud or virtual server (optional) in order to collect meaningful data to establish energy saving, preventive maintenance, and process optimization strategies.
GENERAL FEATURES
- Operating temperature: -30° +50°C
- IP rating: IP66, UL TYPE 4X – IP69K
- Impact resistance: IK06
- Continuous operation
- Insulation class II
MECHANICAL FEATURES
Self-extinguishing polycarbonate with high impact resistance, suitable for outdoor use thanks to the IP69K rating, guaranteed by the EPDM O-ring seal on each module.
OPTICAL FEATURES
- Neutral opaline lens with colored LED light source.
- Refractor with vertical rifling for perfect light distribution at 360°.
- Luminous effect: steady light.
- EOS LM: 10 extremely bright LEDs
- EOS LM RGB: 8 RGB LEDs
ACOUSTIC FEATURES
- EOS SOUNDER: Piezoelectric unit
- EOS SOUNDER A+: Magnetodynamic unit Mixed frequencies 500-2800Hz (depending on sound type selected by dip-switch). 8+4 sounds (mixed types) on 2 channels.
