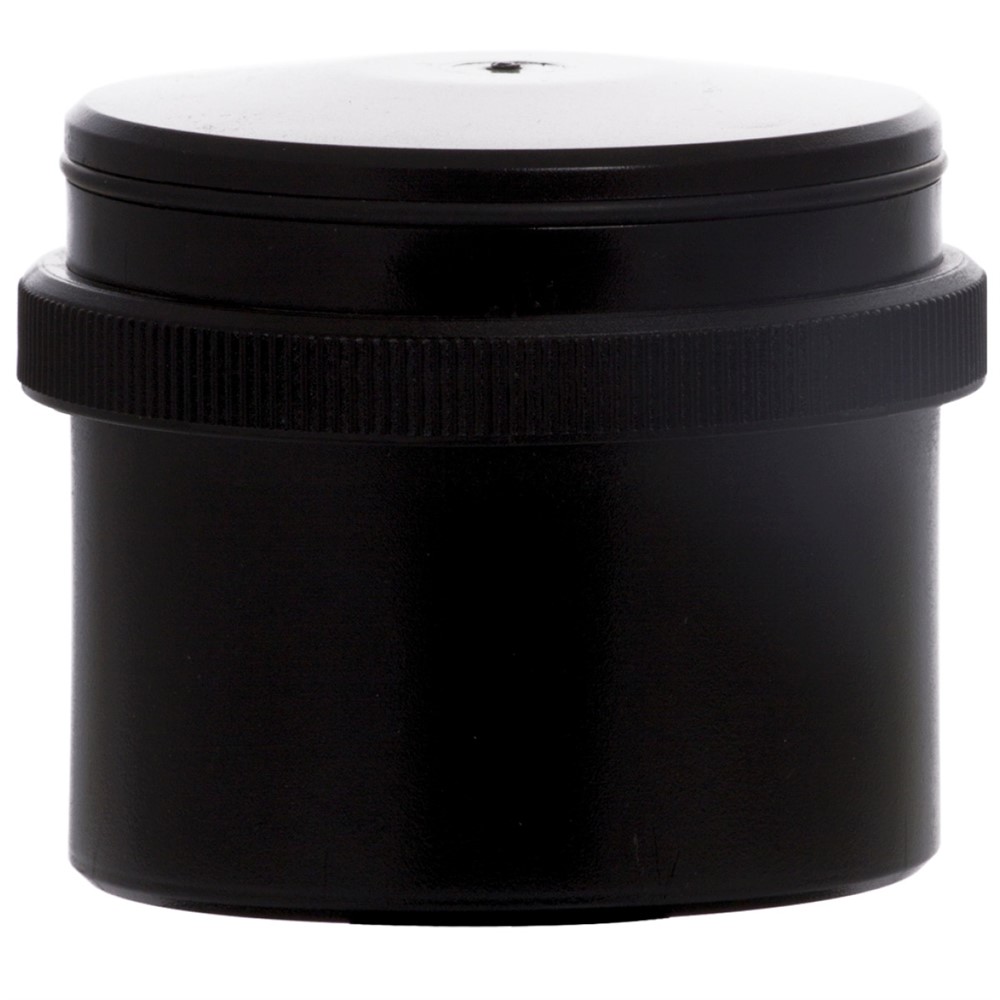

Wiring base for the TWS range.
With 1 common + 5 independent contacts, allows mounting of maximum 5 light
modules or 4 light modules + 1 sounder module.
Provided with top cap to be used when the sounder module is not installed.
NOTE
Must be included with every stacklight
MAXIMUM NUMBER OF MODULES
5 light modules or 4 + 1 sounder module
VOLTAGES
Max 240V
PROTECTION GRADE
IP66, UL TYPE 4X, suitable for outdoor applications
OPERATING TEMPERATURE
-30/+50 C°
MECHANICAL FEATURES
Self extinguishing PC body with high impact resistance, suitable for outdoor use
thanks to the IP66/TYPE 4X protection grade guaranteed by a double polyurethane
gasket installed on every module.
A 1/2” NPT-F thread allows mounting of the complete accessory line.
Can also be installed directly (without accessories) on the machinery by drilling
the marked pre-holes and using the provided gasket
