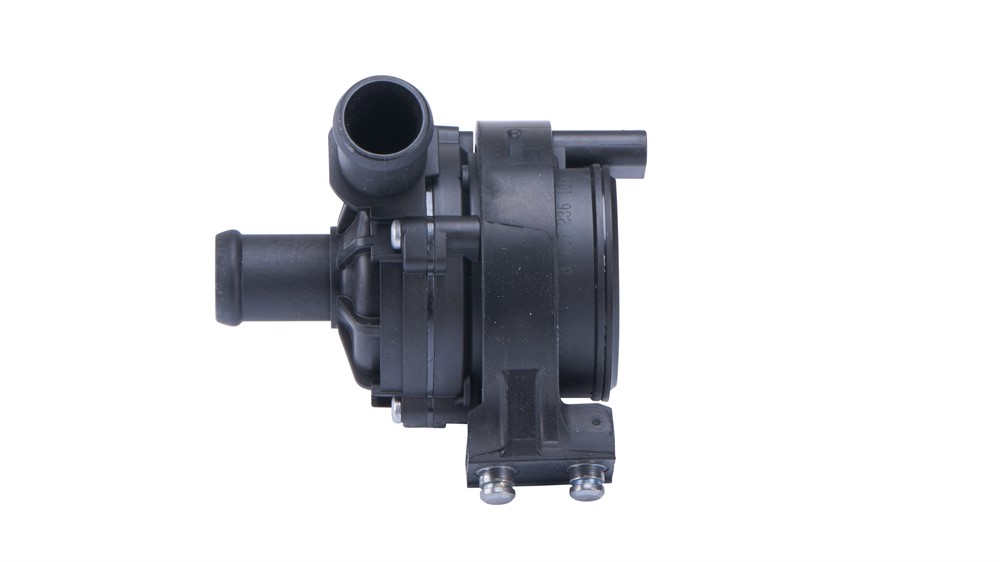

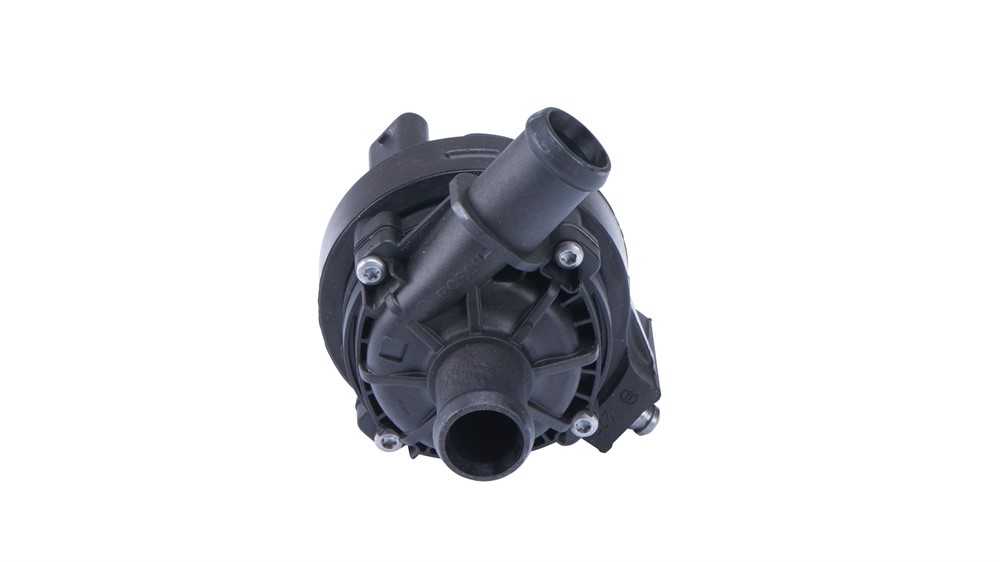

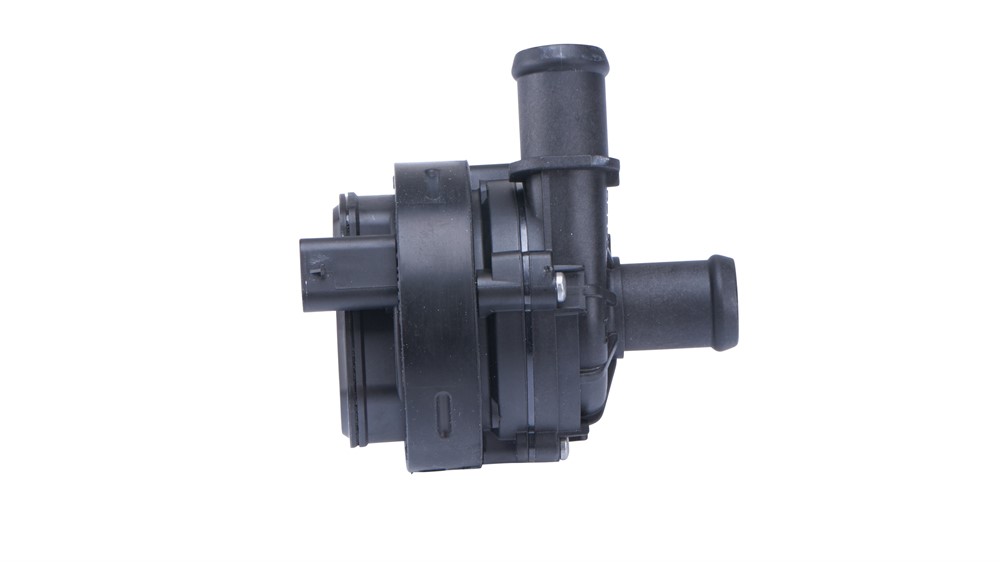

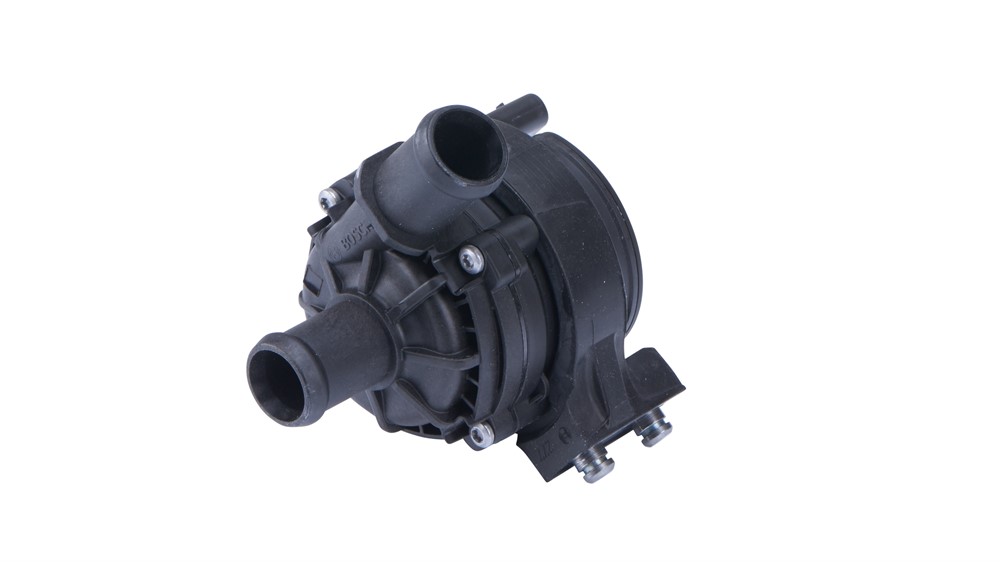

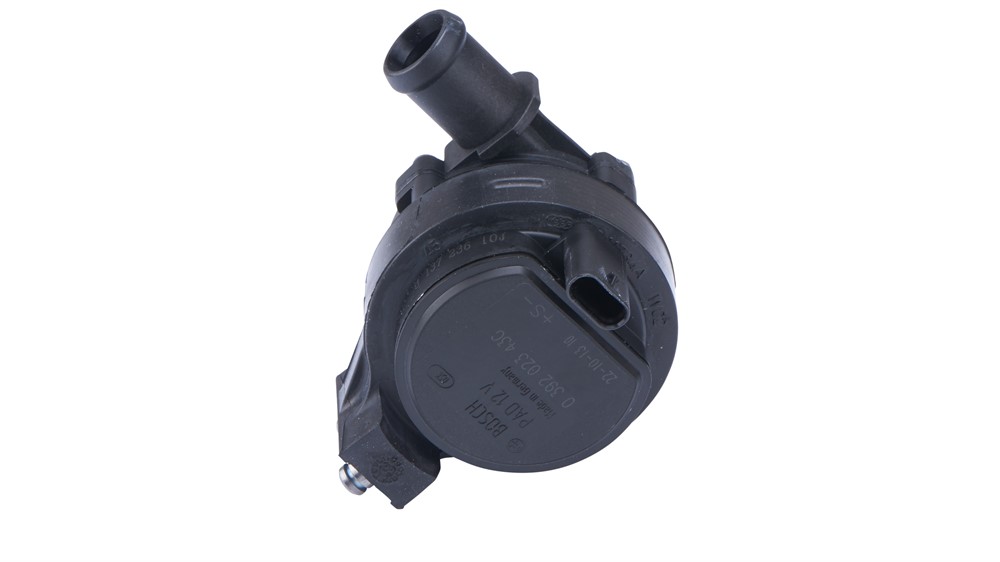

The PAD2 coolant pump is an electronically commutated centrifugal pump. It can be used in a variety of applications, such as supporting the heating circuit, for residual heat utilization and component cooling, as well as for turbochargers and charge-air cooler. As part of the thermal management system, it can contribute to CO2 reduction.
The low noise level and long service life also enable its use in hybrid and electric vehicles, where can be used, for example, to cool the power electronics modules.
- Degree of protection: IPX7
- Operating mode: S1
- Nominal Voltage: 12 V

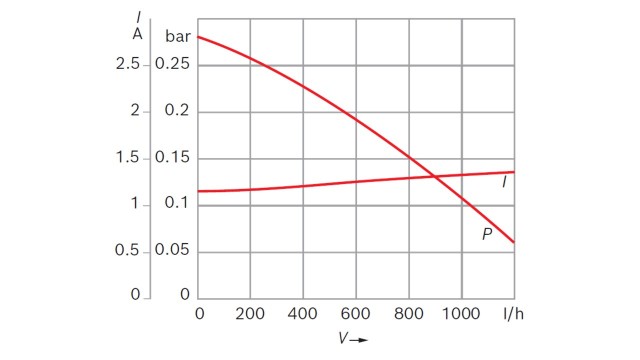

Flow rate (l/h): 500
Nominal pressure (bar): 0,2
Nominal Voltage (V): 12
Weight (kg): 0,325
Control: PWM
Medium: Water/Glycol (50/50)

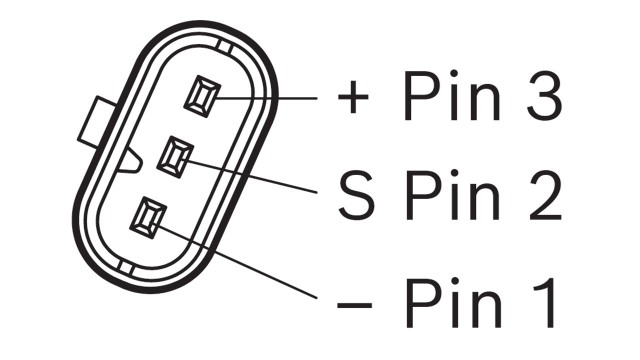

Housing:
- TE Connectivity MCON 1.2 1488991-6 (with CPA),…-2 w/o CPA
- Molex MXP120 34900-3102
Terminal:
- Bosch 1 928 498 811
- Tyco / Molex MCON 1.2 1670146-3 – Ag plated (20awg)
- KOSTAL MLK 1.2 [32124734130]
Seal:
- Bosch 1 928 300 936
- TE Connectivity 967067-1 (20 awg)
- KOSTAL 10800507250
- Cooling modules for trailers, containers or construction machines
- Cooling of batteries
- After-run cooling of components in the powertrain
